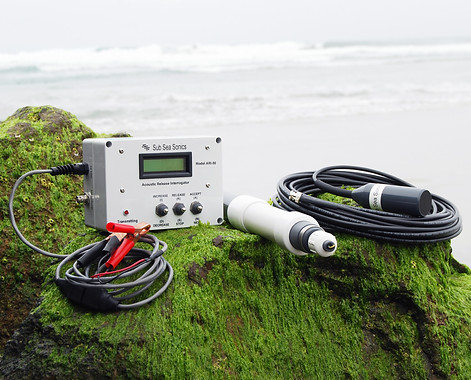

AR50 Cover Shot web.jpg

AR50 Acoustic Release

  • Release upon receipt of an acoustic signal

  • Release by electrolytic erosion of a replaceable link

  • Range of different links available (see Supplies)

  • Maximum load release 90 lb (41 kg)

  • Slant range 1,000 to 3,000 feet (305 to 914 meters)

  • Operating depth is 0 to 600 feet (0 to 183 meters)

  • Battery life approximately one year using 9 lithium AA batteries

  • Each unit has a unique four digit acoustic identification code

  • Lower cost, smaller size, lighter weight and easier link change compared to AR60 - See new discount pricing!!

Check Pricing
Request a Quote

AR50 OPERATIONS

This release unit is deployed underwater and contains the receiver plus a micro computer and batteries and holds a release link with a screw-on retainer cap for link replacement. It turns on automatically when it is placed in the ocean by means of water contact to the link and the coil contacts. It has a unique 4 digit identification number that has been assigned to it by the factory. This identification number is entered into the topside acoustic release interrogator (ARI-50) when a command is sent. When the release command is received the unit applies its full battery voltage to the link (pos) and the ‘coil’ (neg) for 15 minutes. This causes the small hoop of metal to erode away effecting the release. This release unit has a single green LED that flashes once per 10 seconds when the unit is on and listening. There is a checkout command that can be sent to cause the unit to switch on the erosion voltage for only 10 seconds which is useful for checkout. (Note: This release works in ocean water and typical bay water. It will not work in fresh water since the electrolytic erosion will not occur at a fast enough rate).
